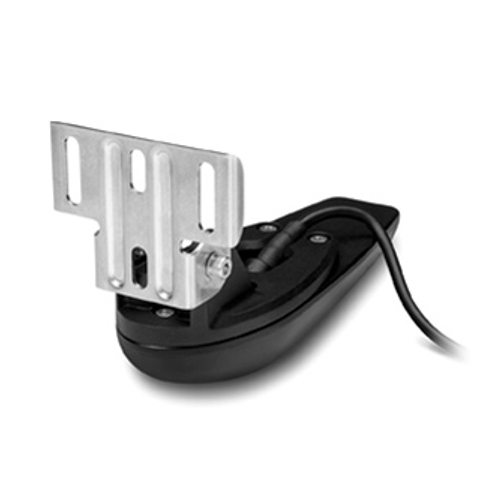

GARMIN GT20-TM TRANSDUCER

Frequency: Traditional 77/200; ClearVü CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz)
Power: Traditional 500 W; ClearVü 500 W
Beamwidth: Traditional (45/15); ClearVü (2.5 @ 455 kHz) & (1.6 @ 800 kHz)
Maximum depth: Traditional: 1,900 ft.; ClearVü: 750 ft.
Depth/Speed/Temperature: Depth and Temperature
Number of pins: 4-pin
Supported deadrise/Transom angles: 0°-70° degree transom

Slider

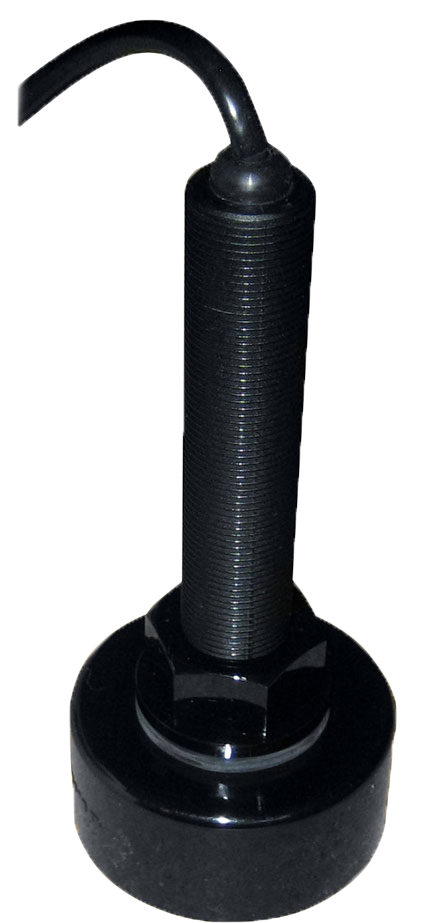

FURUNO 520-5PSD

600 Watts
50/200 kHz
46/10 degree Beam Angles
Plastic Thru-Hull
8-Meter Cable with 10-Pin Connector

Slider

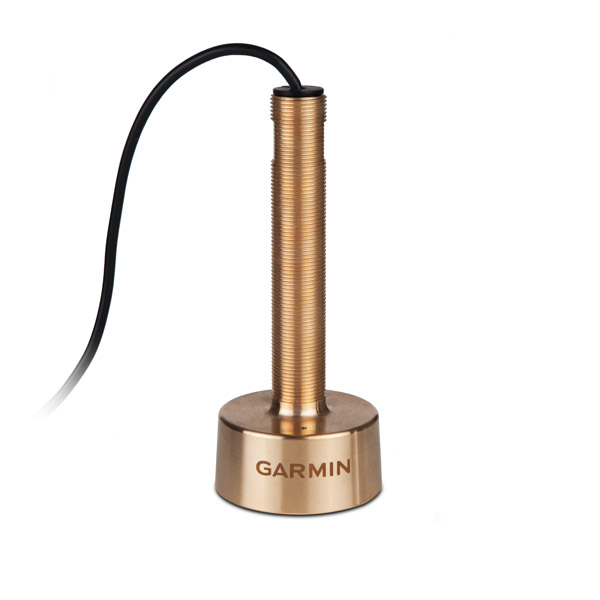

GARMIN GT15M-TH TRANSDUCER

Frequency: CHIRP Mid-band (85-165 kHz)
Power: 600 W (RMS)
Beamwidth: 24-13
Maximum depth: 1,900 ft. freshwater
Depth/Speed/Temperature: Depth and Temperature
Number of pins: 8-pin
Supported deadrise: 0°- 6° deadrise

Slider

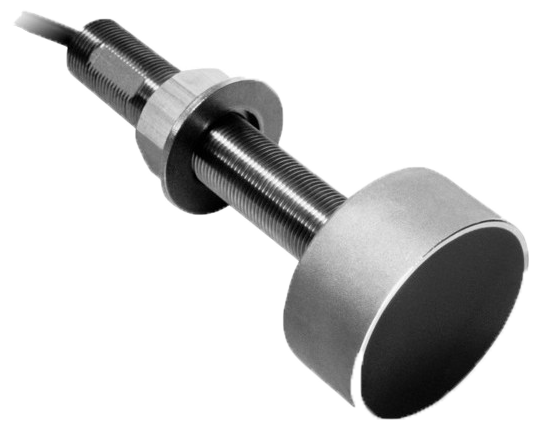

AIRMAR SS502 TRANSDUCER

Frequency: 50/200 kHz
Power: 600 W (RMS)
Beamwidth: 45/12
Maximum depth: 800-1,200 ft.
Depth/Speed/Temperature: Depth and Temperature
Number of pins: 8-pin
Supported deadrise/Transom angles: 0° degree deadrise

Slider
